3300 V dual IGBT module
IHV A 3300 V ，400 A 130 mm雙 IGBT模塊， 采用第二代IGBT和發射極控制二極管 - 為牽引和工業應用提供經驗豐富的解決方案。
也可用作200 A半橋模塊：FF200R33KF2C
特征描述:
優勢:
目標應用:

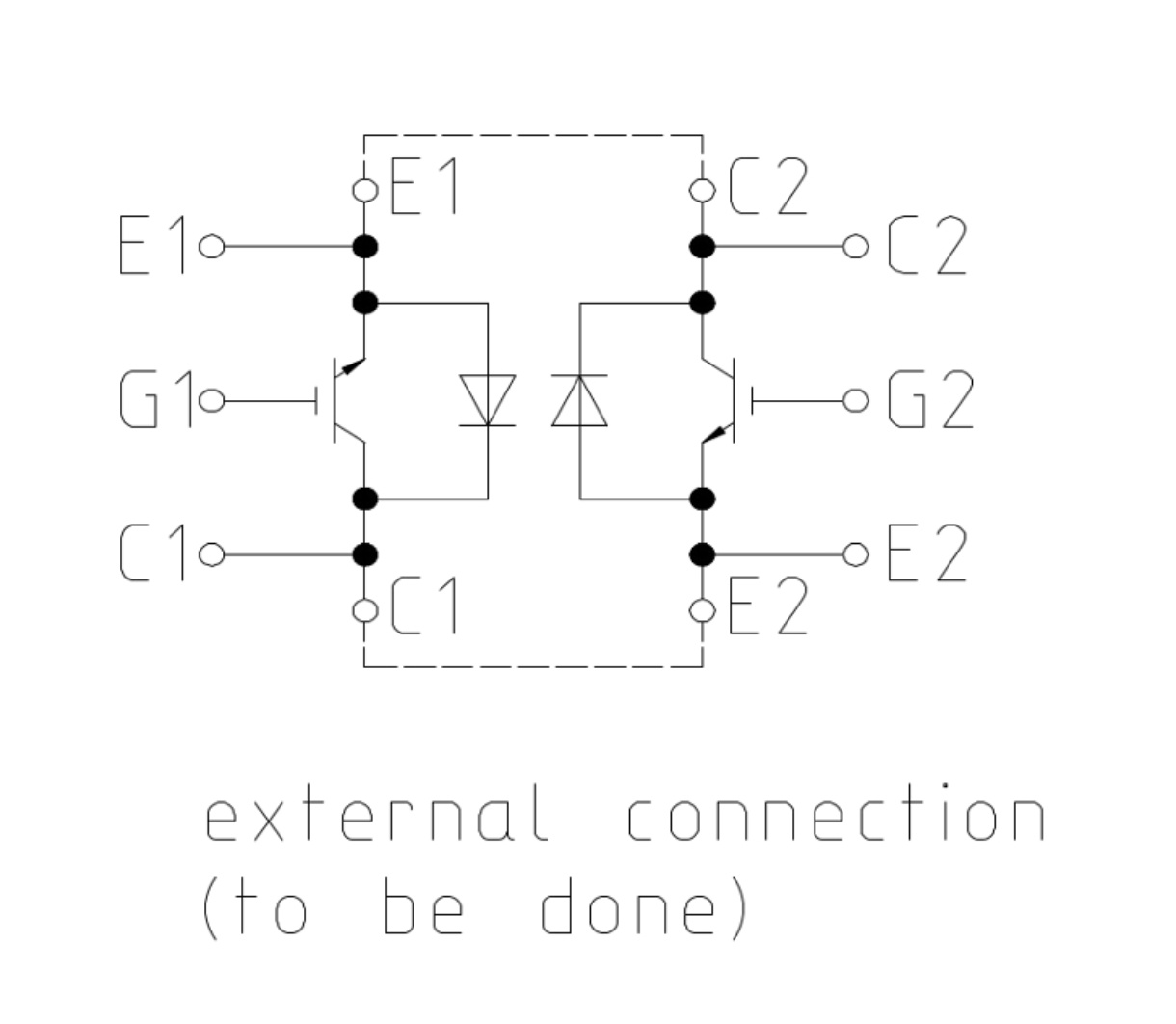

鏈接線路圖表
指標參數
| Parametrics | FF400R33KF2C |
|---|---|
| Configuration | Dual |
| Dimensions (width) | 140.0 mm |
| Dimensions (length) | 130.0 mm |
| Housing | IHV |
| IC(nom) / IF(nom) | 400.0 A |
| IC max | 400.0 A |
| Qualification | Industrial ; Traction |
| Technology | IGBT2 |
| VCE(sat) (Tvj=25°C typ) | 3.4 V |
| VCES / VRRM | 3300.0 V |
| VF (Tvj=25°C typ) | 2.8 V |
| Voltage Class | 3300.0 V |
